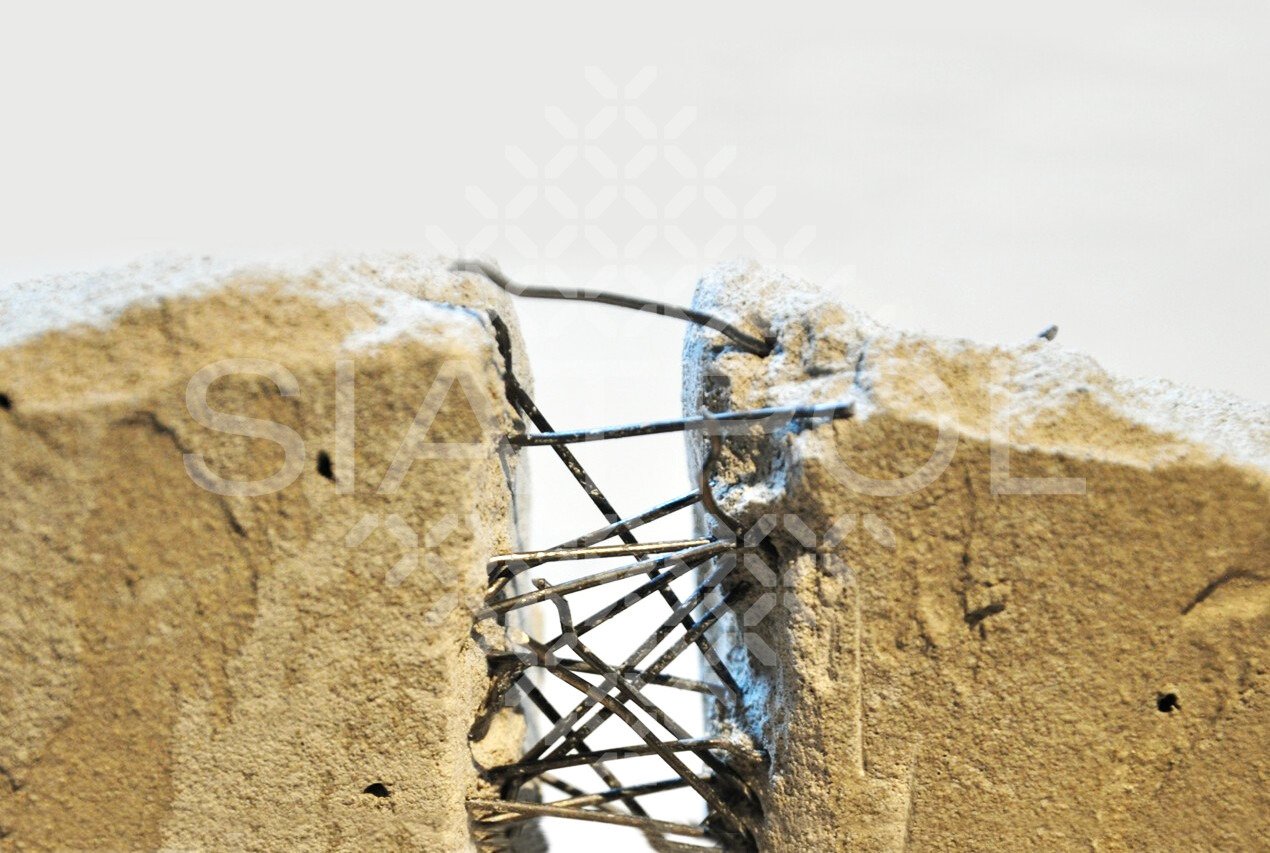

Scattered reinforcement
The steel fibres we produce have received the relevant Technical Approval and Hygienic Approval.

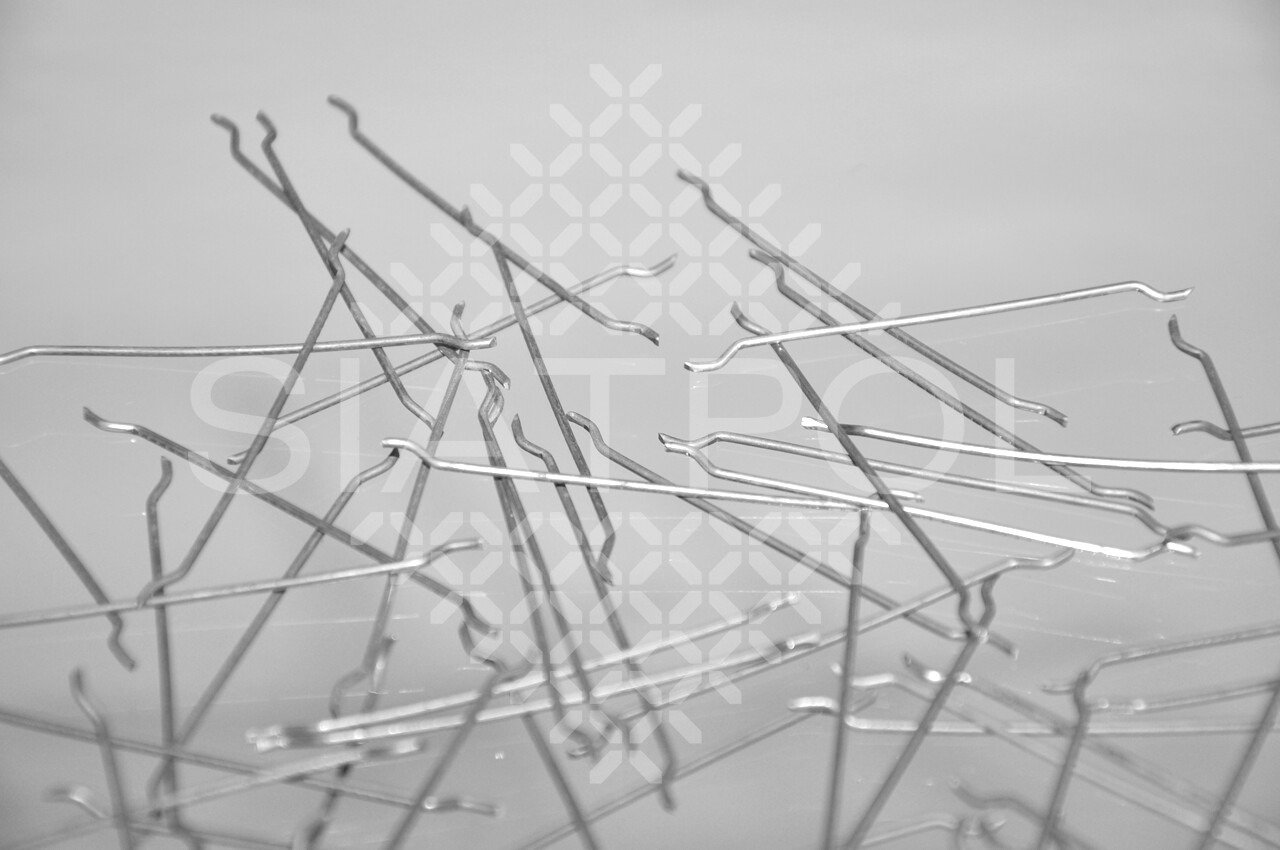

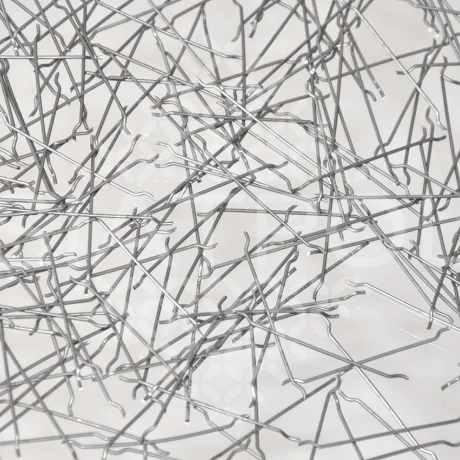

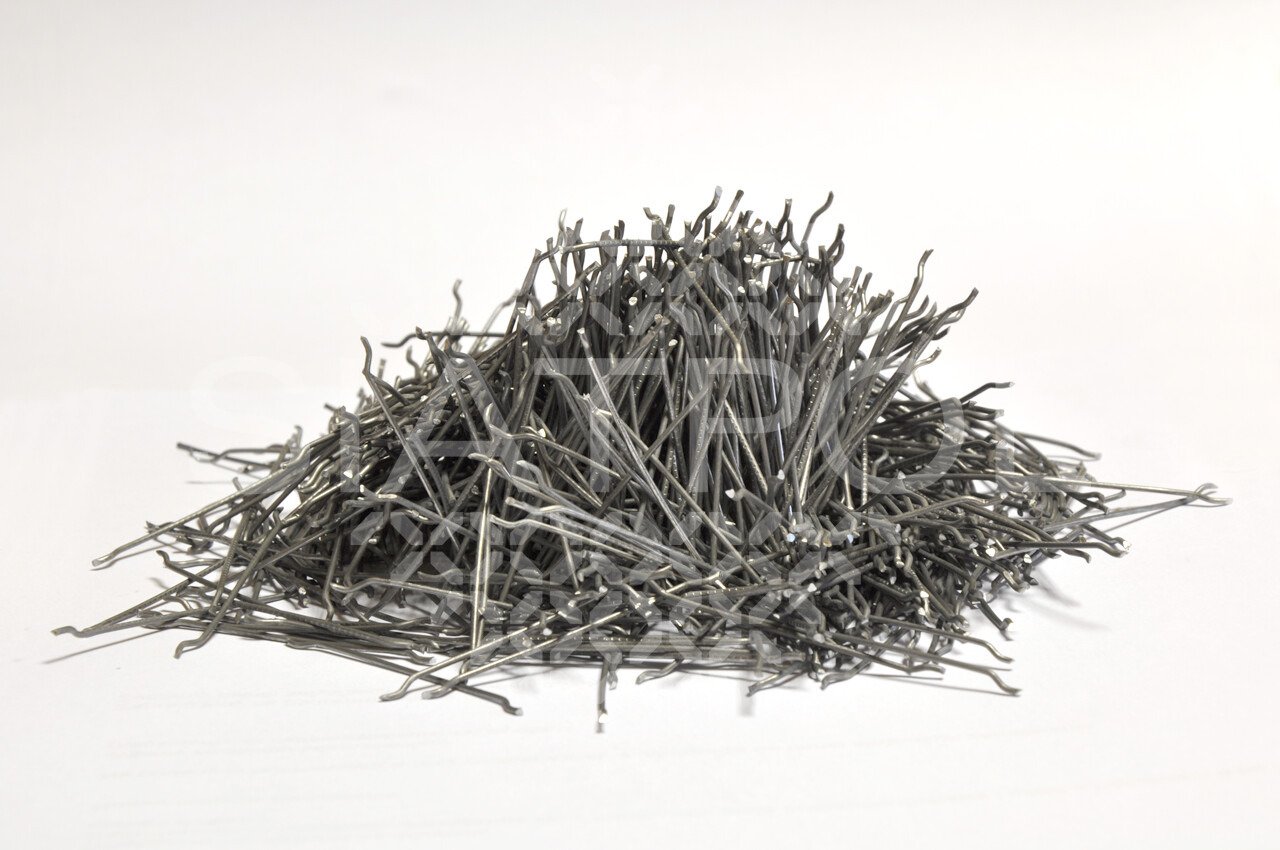

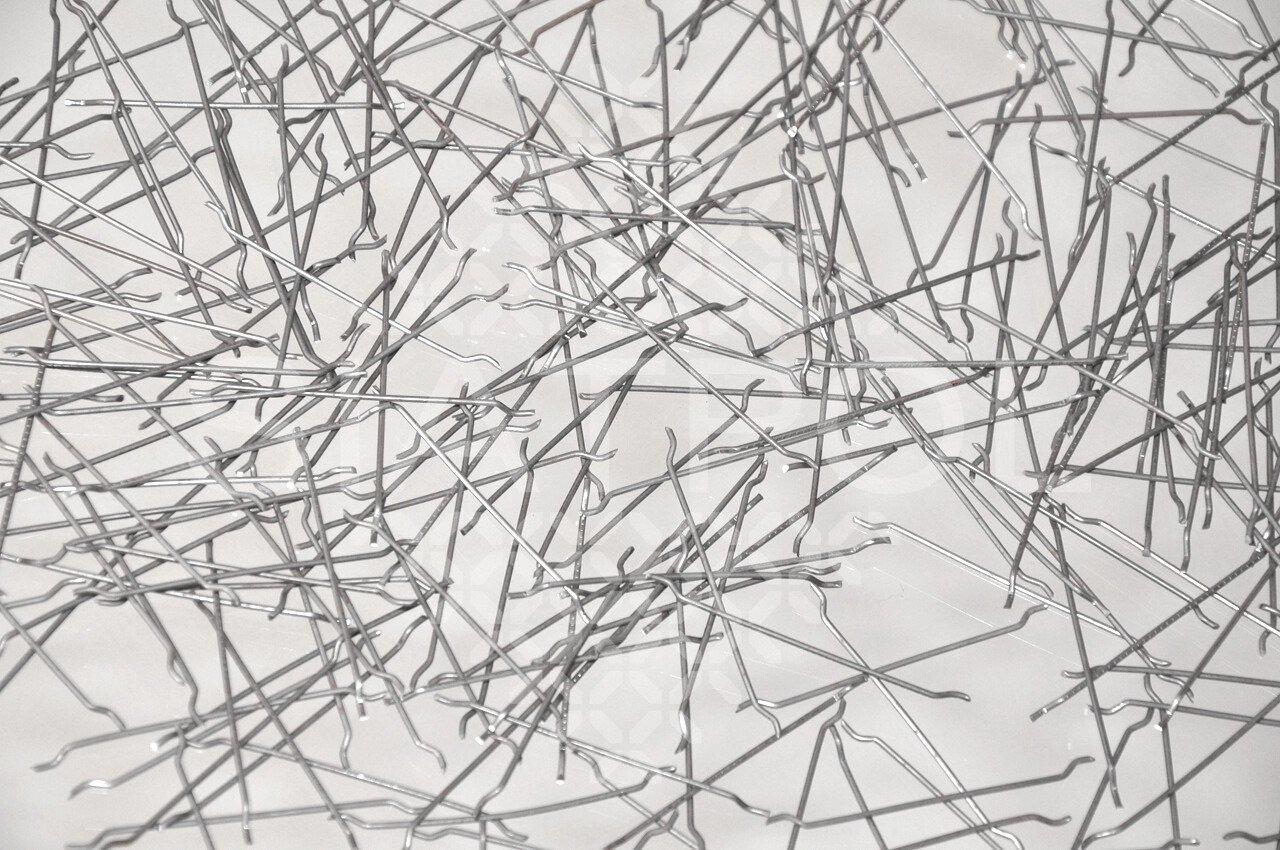

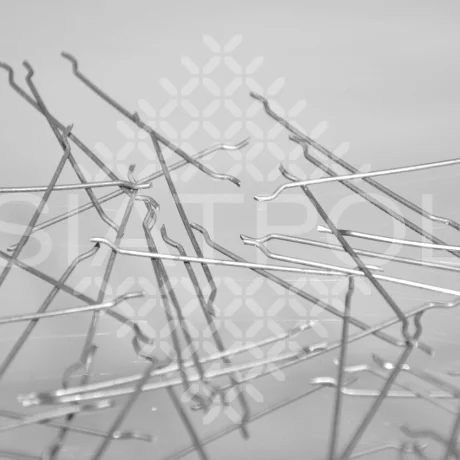

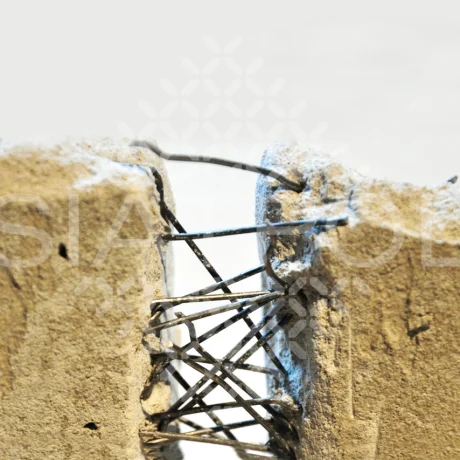

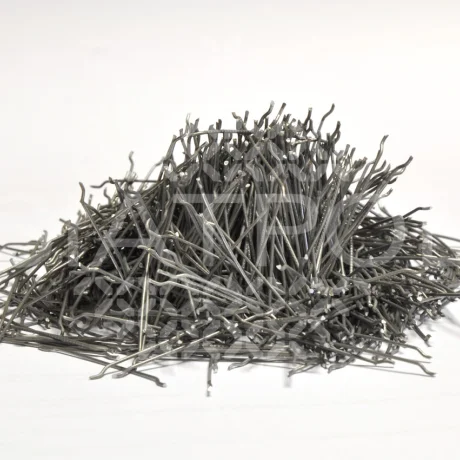

SIATPOL 1/50 and SIATPOL 1/60 steel fibres are intended for micro-reinforcement of concrete. They can be used as homogeneous dispersed reinforcement, in particular in concretes for industrial floors, traffic surfaces and for non-structural prefabricated elements.
Depending on the design properties of the concrete, SIATPOL 1/50 and SIATPOL 1/60 steel fibres can be added at a rate of 25 to 35 kg per m³ of concrete.
Natural aggregate with a grain diameter not exceeding 16mm may be used in steel fibre concretes. The class of concrete should not be less than B25 and the w:c ratio should not be greater than 0.6. Chemical admixtures that do not corrode steel fibres may be used to reduce the amount of batch water.
Structures and products made of concrete with added steel fibres should be treated in the same way as structures and products made of normal concrete.
Application: SIATPOL 1/50 and SIATPOL 1/60 steel fibres are intended for concrete micro-reinforcement. They can be used as homogeneous dispersed reinforcement, in particular in concretes intended for: industrial floors, traffic surfaces, non-structural prefabricated elements.

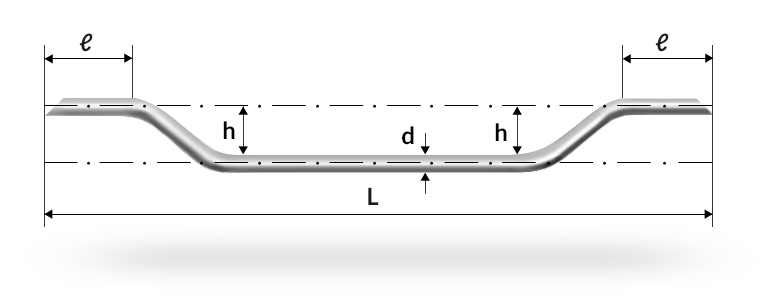

Technical specifications
| Parameters | 1/50 | 1/60 |
|---|---|---|
| d [mm] | 1,0±10% | |
| L [mm] | 50±10% | 60±10% |
| l [mm] | 2,5±10% | |
| h [mm] | 2,0±10% | |
| α [°] | 42±10% | |
Preparation for transport
Packaging of the fibre and preparation of the pallet for transport.
Weight of a single package 20kg. A pallet contains 45 packages (900 kg).

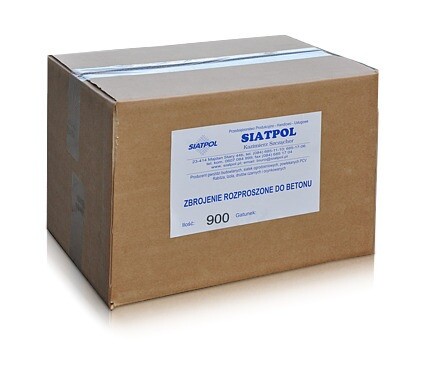

Single pack 20 kg

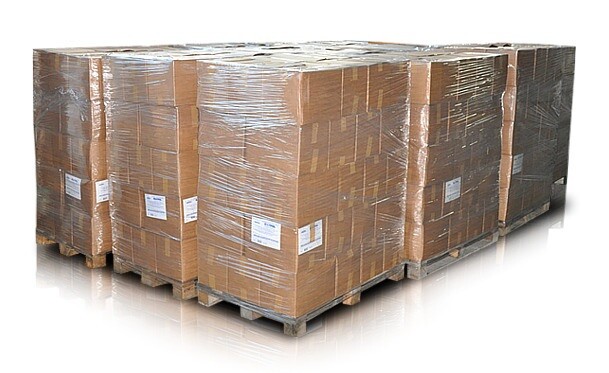

Pallet prepared for transport 900 kg
