2D fence panels from the manufacturer
2D panels from SIATPOL are an offer for individual and wholesale customers. Our panels effectively protect the area and look great - both at home and around industrial facilities. When you buy from us, i.e. directly from the manufacturer, you benefit from proven quality, good prices and short deadlines. We also provide full support: from advice and transport to professional on-site installation.
Key features of 2D fence panels.
The 2D panels are simple, minimalist in form. They are made of horizontal and vertical steel bars, spot-welded. Their characteristic feature is the absence of the ribbing (V-shaped reinforcements) found in 3D panels. The double horizontal wires significantly increase resistance to attempts at forcing, impact or bending. As a result, 2D panels are a popular choice for securing areas requiring a higher level of protection such as schools, kindergartens, sports grounds, playgrounds, airports and commercial buildings.
2D panel dimensions available.
We offer a wide range of 2D panel sizes, so you can easily fit the fence to the specifics of your plot or property.
- Standard width: 2500 mm.
- Panel height: from 1030 mm to 2030 mm.

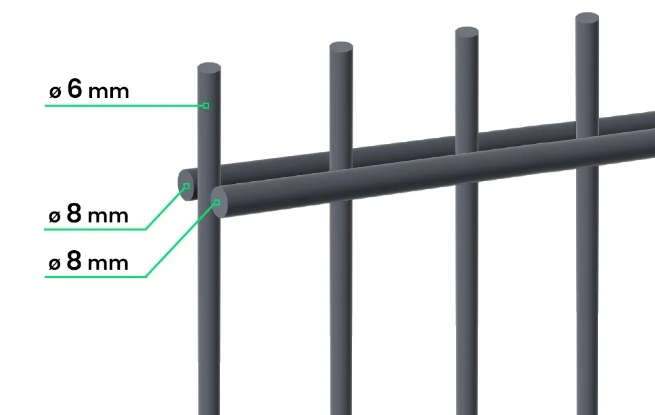

- Bar thickness: 6/5/6 mm or 8/6/8 mm.
Technical specifications of 2D panels
| height of fence [mm] |
height of post [mm] |
number of fixings per intermediate, end and corner post | mesh size [mm] |
wire diameter ø[mm] |
|---|---|---|---|---|
| 1030 | 1600 | 2 | 50×200 | 6×5×6 or 8×6×8 |
| 1230 | 1800 | 2 | ||
| 1430 | 2000 | 3 | ||
| 1630 | 2400 | 3 | ||
| 1830 | 2400 | 3 | ||
| 2030 | 2600 | 4 |
See standard wire diameters
View standard 2D panel heights
-
1030
-
1230
-
1430
-
1630
-
1830
-
2030
Are you interested in other dimensions? Contact us!
We can produce a 2D fence panel with unusual parameters!
2D panel colours of your choice.

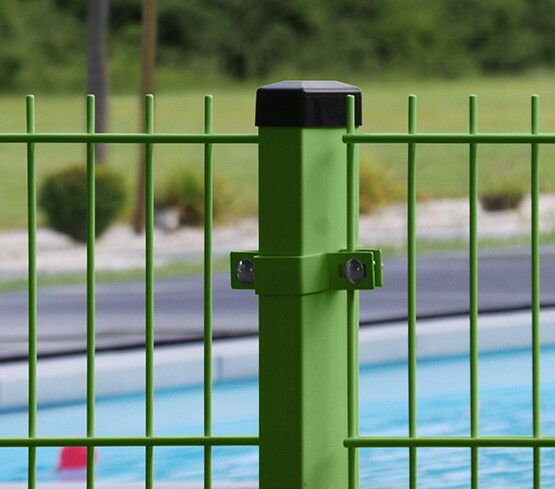

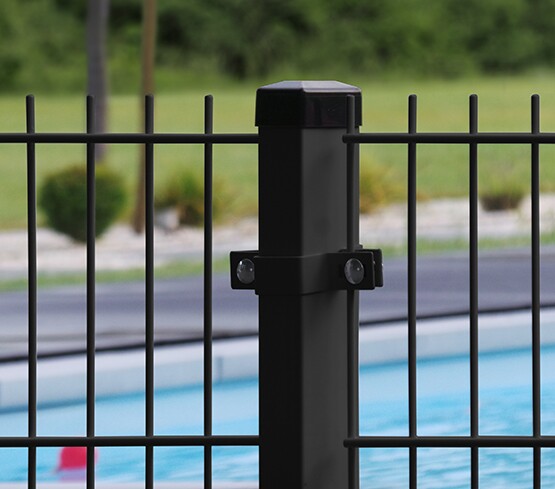

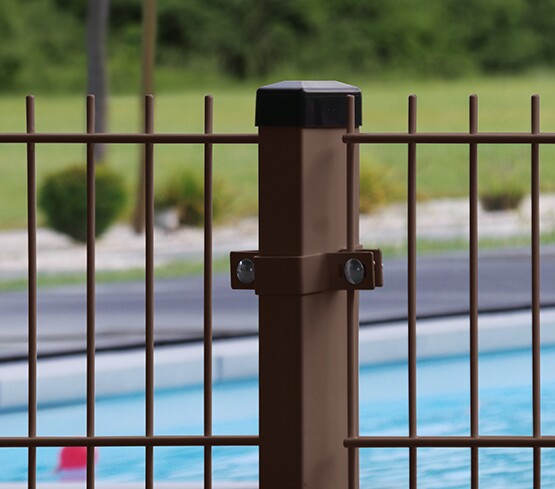

Our products are painted as standard in popular colours: dark graphite (RAL 7016), grey (RAL 7040), green (RAL 6005), brown (RAL 8017) and black (RAL 9005).
Interested in a different colour? Contact us!

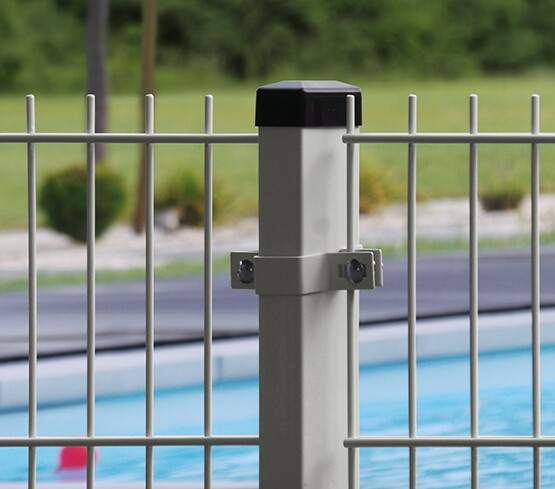

We have a professional powder coating plant and can paint the panels in any RAL colour.
Materials and corrosion protection.
We manufacture 2D fence panels from high-quality low-carbon steel and protect their surface in two stages.

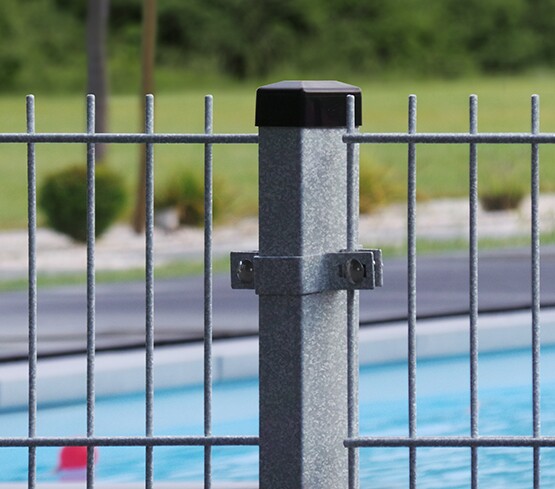

1. Hot dip galvanizing in the company's own galvanising plant - corrosion protection for steel for up to 15 years
- Zinc applied by fireproofing (immersion of the component in molten zinc at 450-460°C).
- Application of the zinc coating evenly even in hard-to-reach areas (bends, grooves).
- Average thickness of the protective coating: 50 - 70 μm.
2. Powder coating in the company's own paint shop - provides a long-lasting colour and an additional layer of protection
- Powder paint applied by electrostatic spraying.
- Oven curing at 200°C.
- Creation of a paint film that is resistant to corrosion, chemicals, heat and mechanical damage.
Thanks to our technologies, you don't have to worry about rust, colour fading or deformation. Even after years, the fence looks like new and still performs its purpose. It's ideal for those who value durability without the need for regular maintenance.
Transport and installation of fence panels.
When you buy 2D fence panels from SIATPOL, you can count on a comfortable service:
- Transport to the project site - within Poland and Europe.
- Installation of the fence by our company teams - quickly and professionally.
- Technical advice - we will help you plan your fence and select all the elements.
Professional installation is not only aesthetically pleasing, but also guarantees durability and safety for the long term. Trust our experience!
Frequently asked questions - 2D fence panels.
2D panels are robust, rigid and durable fences. Their construction based on double horizontal bars ensures high resistance to damage and stability for years.
2D panels have a simple, flat design and are more robust due to thicker wires and reinforcements. 3D panels are lighter, less expensive and have distinctive V-shaped embossing.
Standard 2D panels have an openwork form, so they do not protect from the view of passers-by. However, cover mats, composite panels or planting can be used to increase privacy.
The typical width of the panel is 2500 mm. The height varies from 1030 mm to 2030 mm. We also offer the possibility of custom-made panels.
Yes - we provide a comprehensive service: delivery of the panels to the project site and expert installation by experienced teams.
Thanks to galvanisation and powder coating, 2D panels can remain aesthetically pleasing and durable for up to 15 years without maintenance.
Of course - in addition to the standard colours (green, graphite, black) we offer painting in any RAL colour.
