Embossed panelfences
We offer comprehensive fencing systems, which we make from profiled or straight welded panels. All are equipped with fixing posts and mounting accessories.
We manufacture customised gates and wickets to customers' specifications. We offer both swing and sliding solutions.

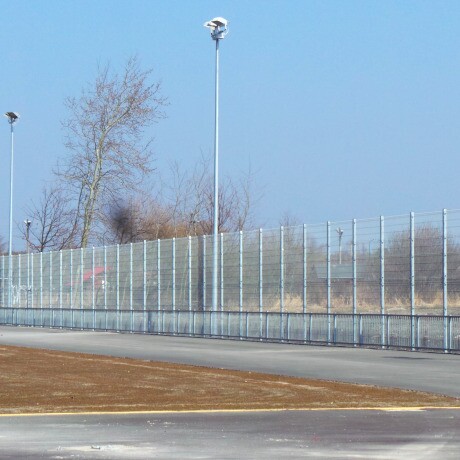

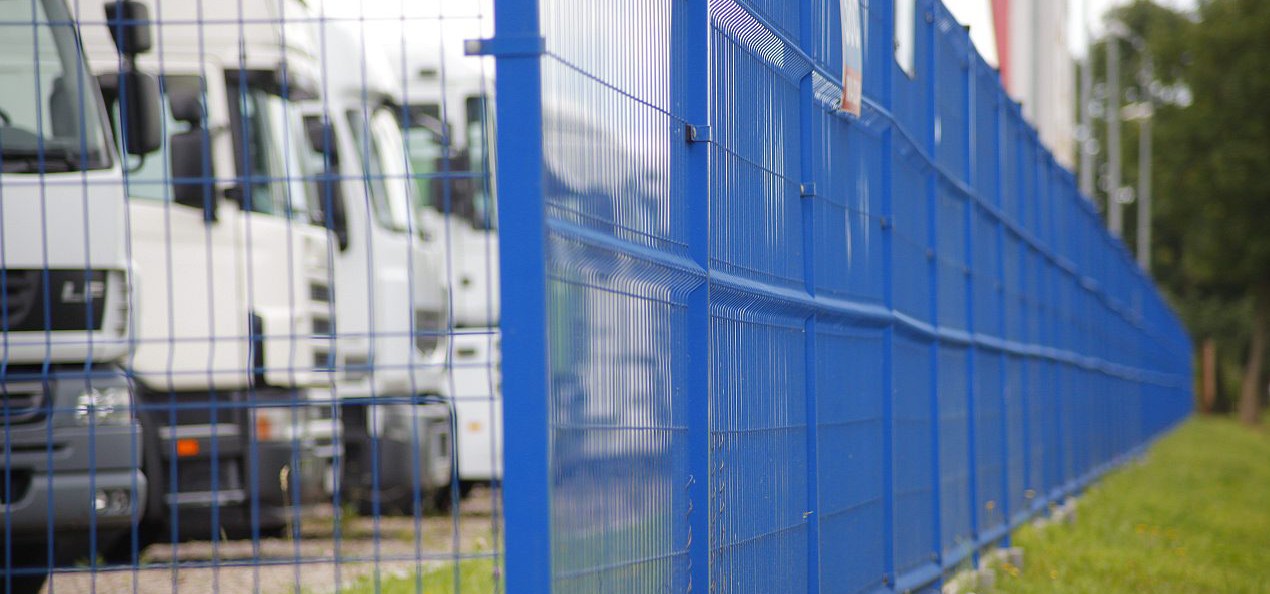

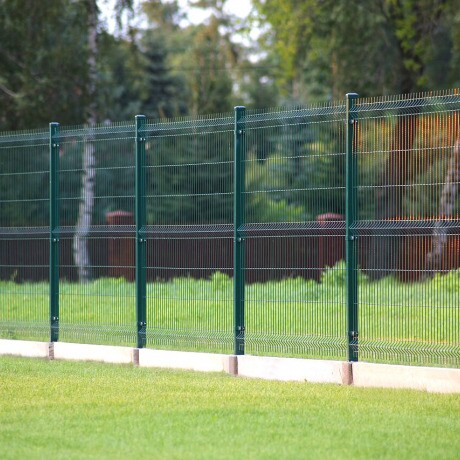

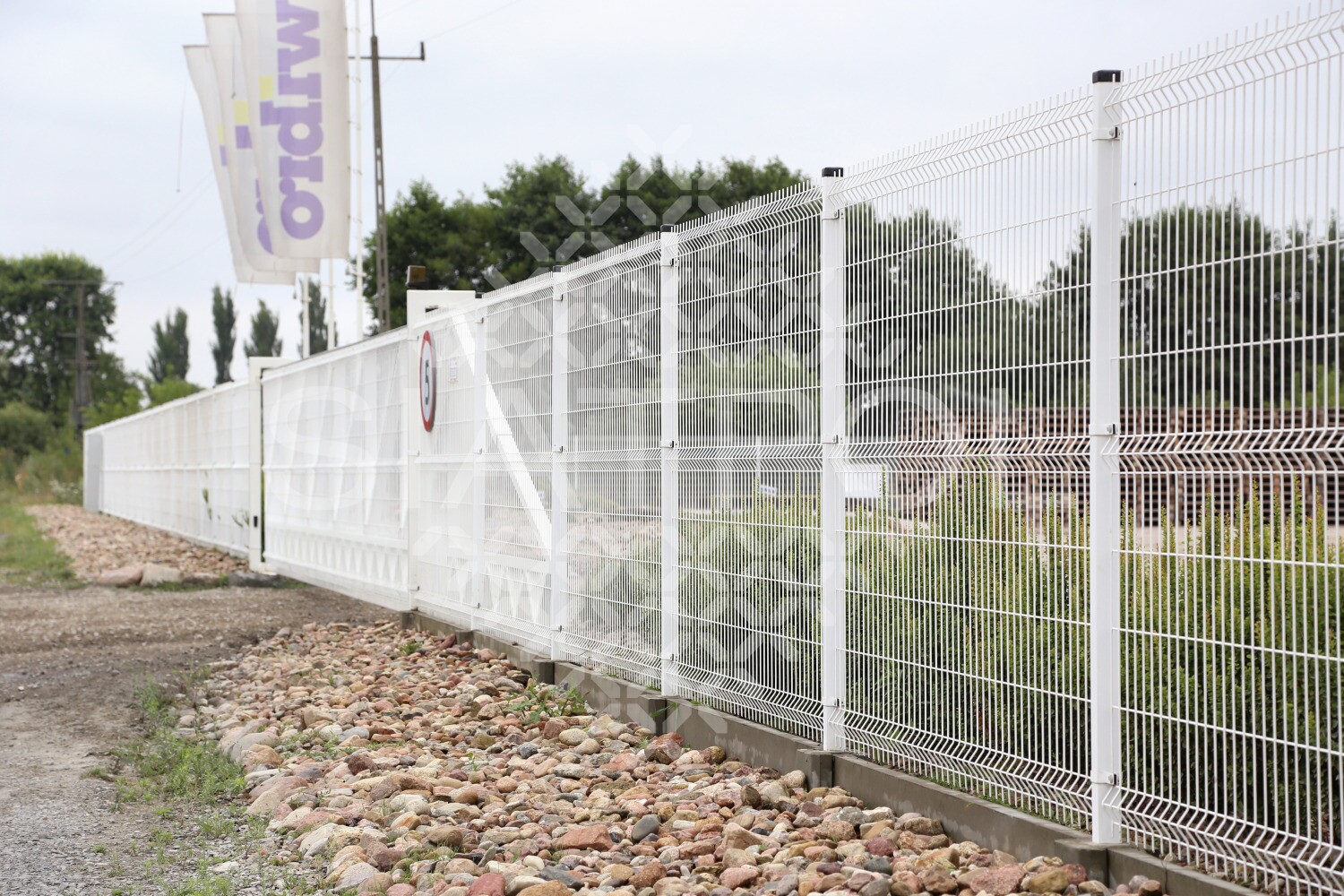

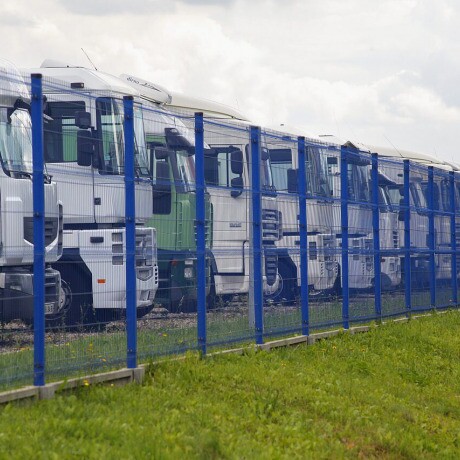

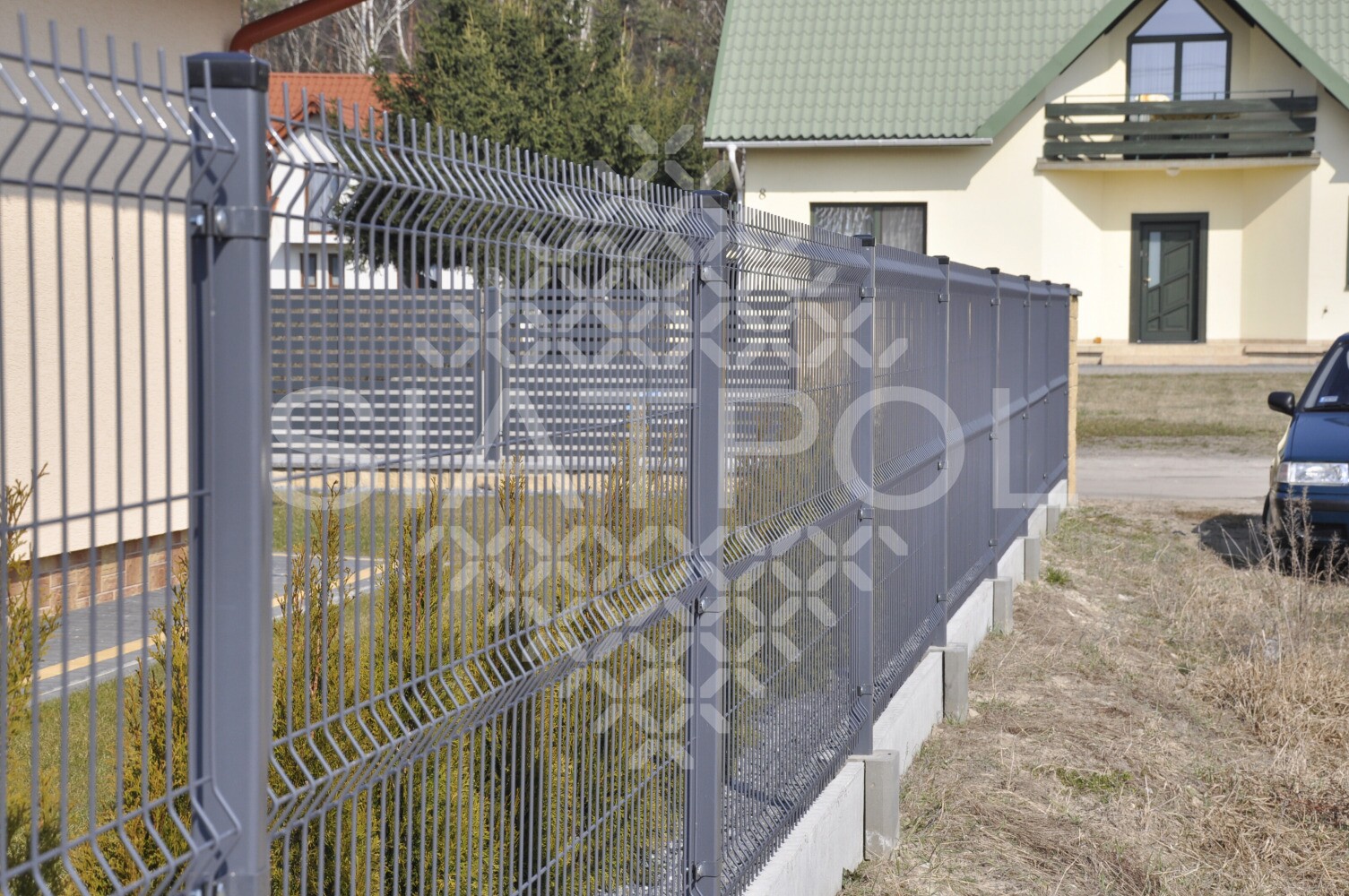

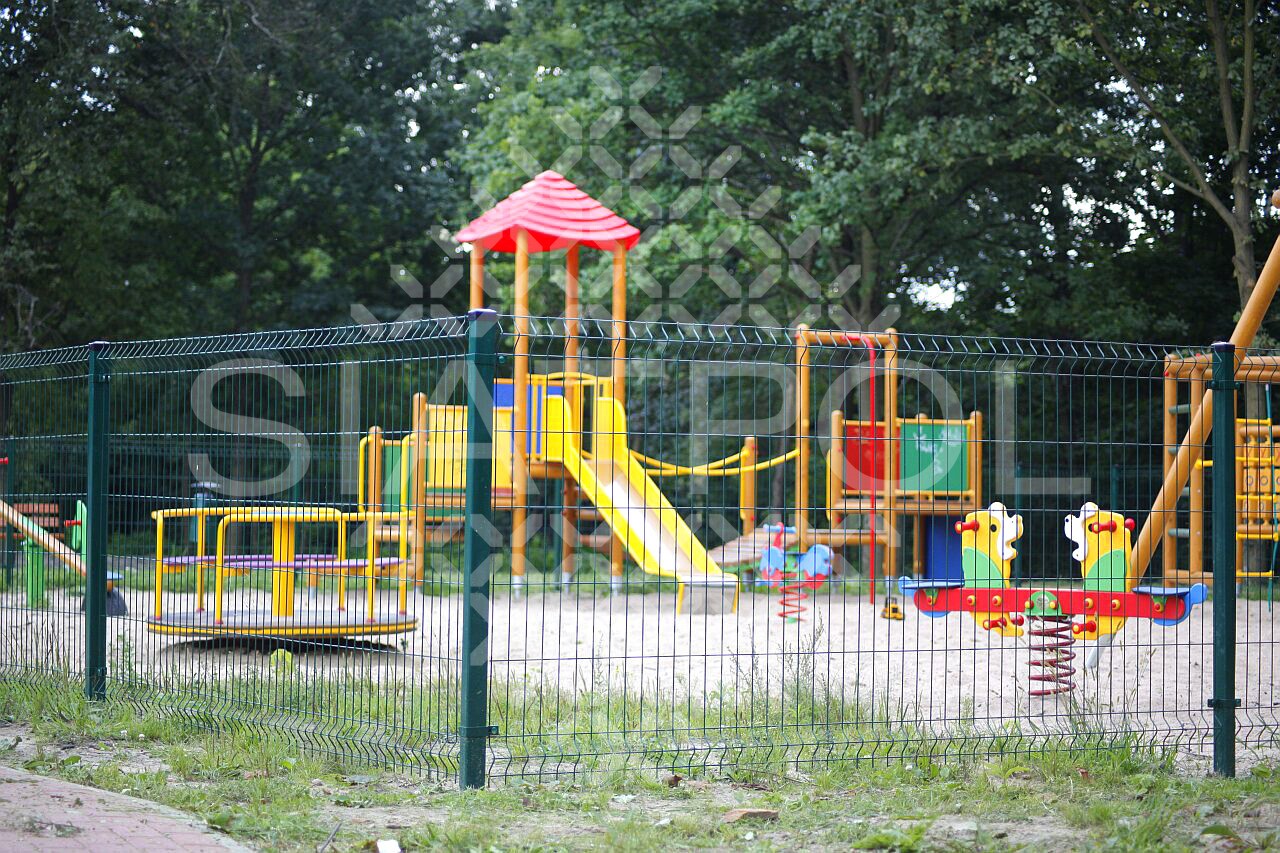

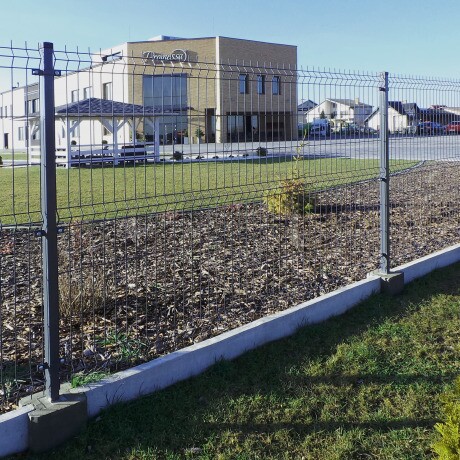

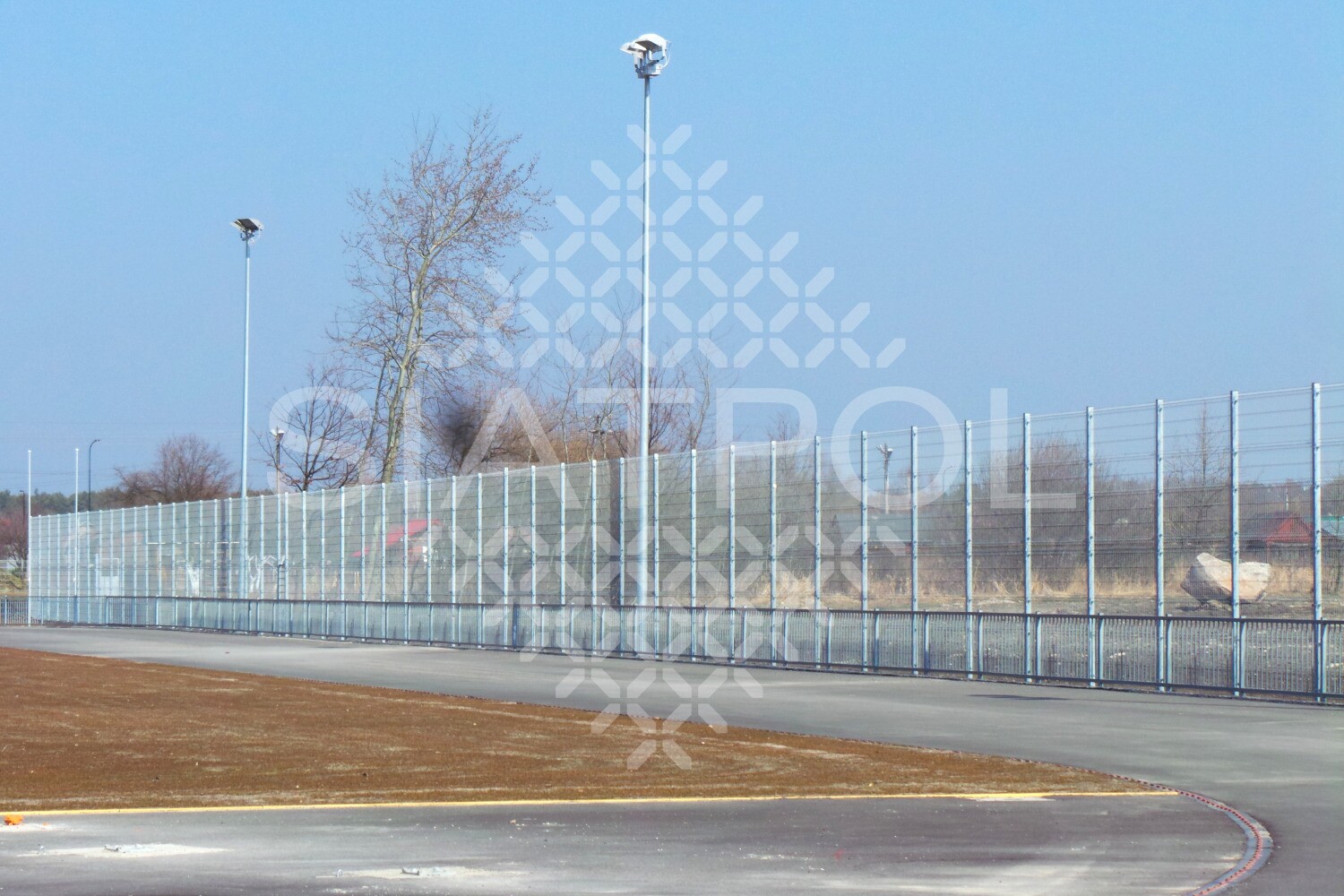

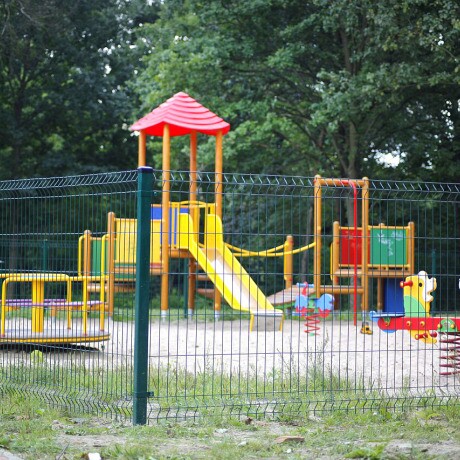

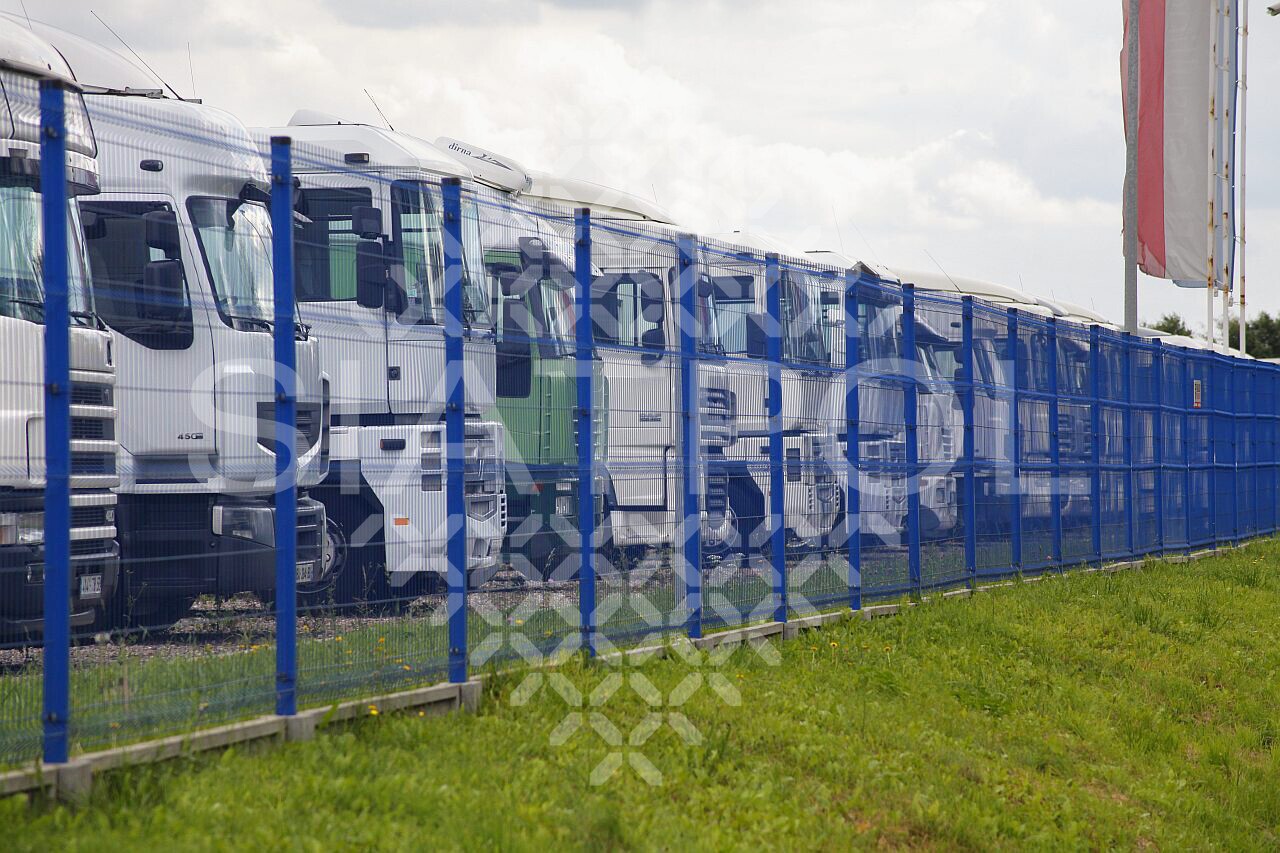

Application: Panel fences have a wide range of applications. Particularly recommended for securing: factories, warehouses, stadiums, sports facilities, schools, public buildings, private properties.
create your space
Technical specifications
| Type | height of fence [mm] |
height of post [mm] |
number of panel profiles [mm] |
number of fixings per intermediate, end and corner post | mesh size [mm] |
wire diameter ø[mm] |
|---|---|---|---|---|---|---|
| TYPE 2V fence panels (2V - two reinforcements) | ||||||
| 2V | 1030 | 1600 | 2 | 2 |
50×200 |
4,0 or 5,0 |

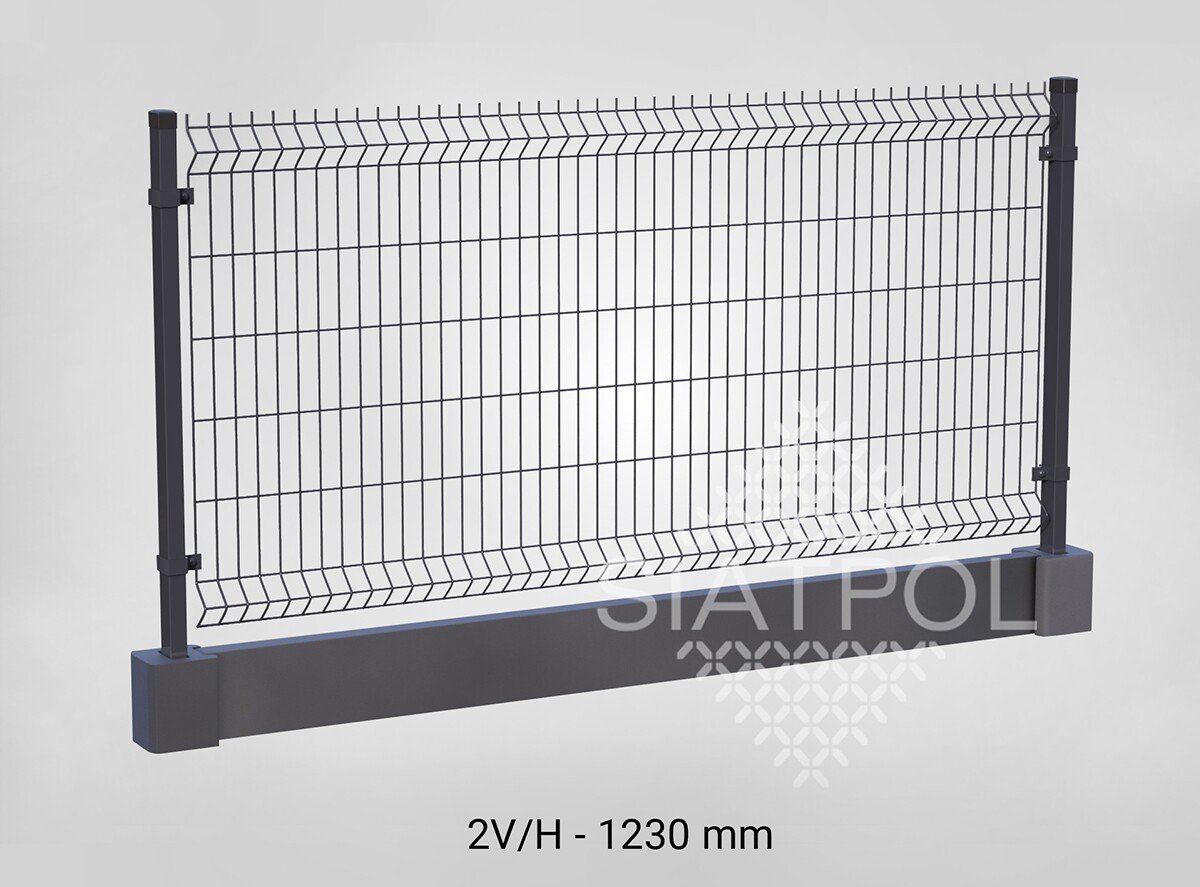

| 2V | 1230 | 2000 | 2 | 2 | ||
| TYPE 3V fence panels (3V - three reinforcements) | ||||||

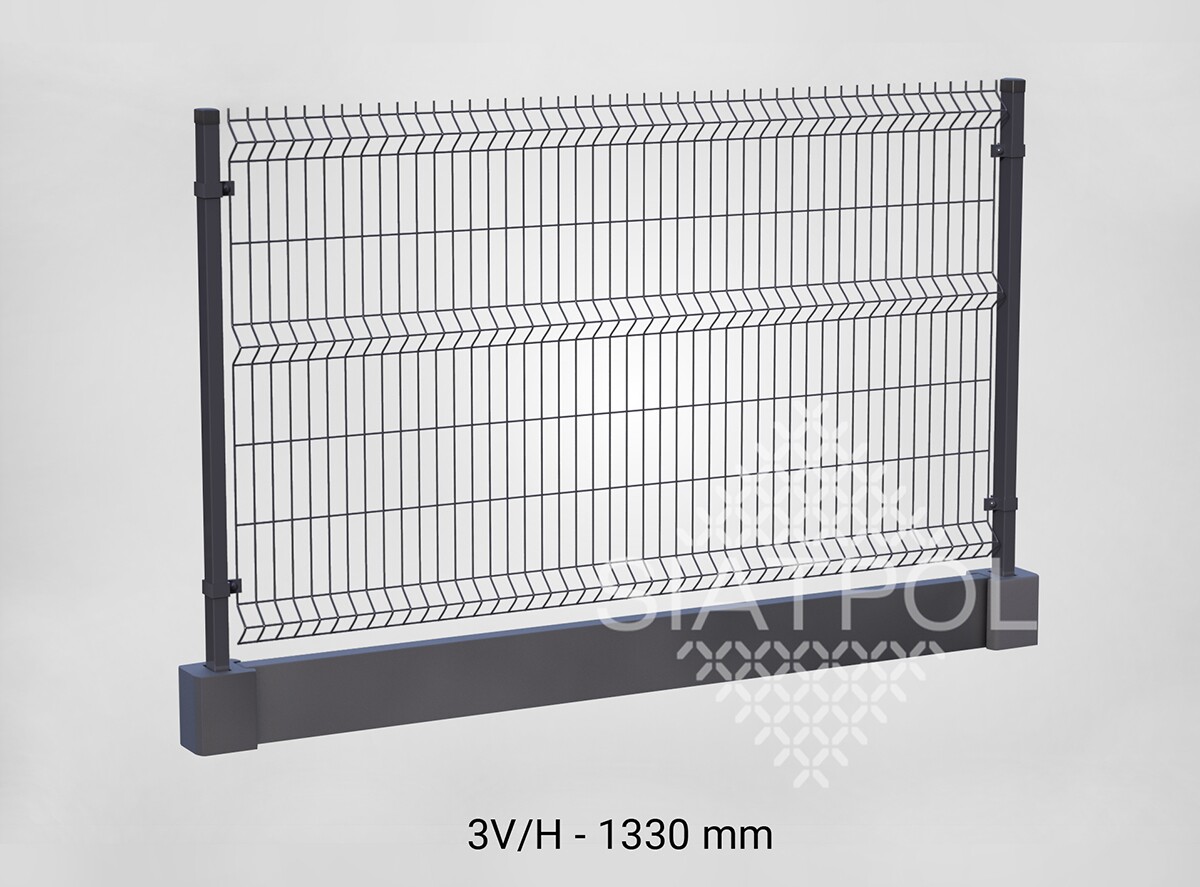

| 3V | 1330 | 2000 | 3 | 3 | ||

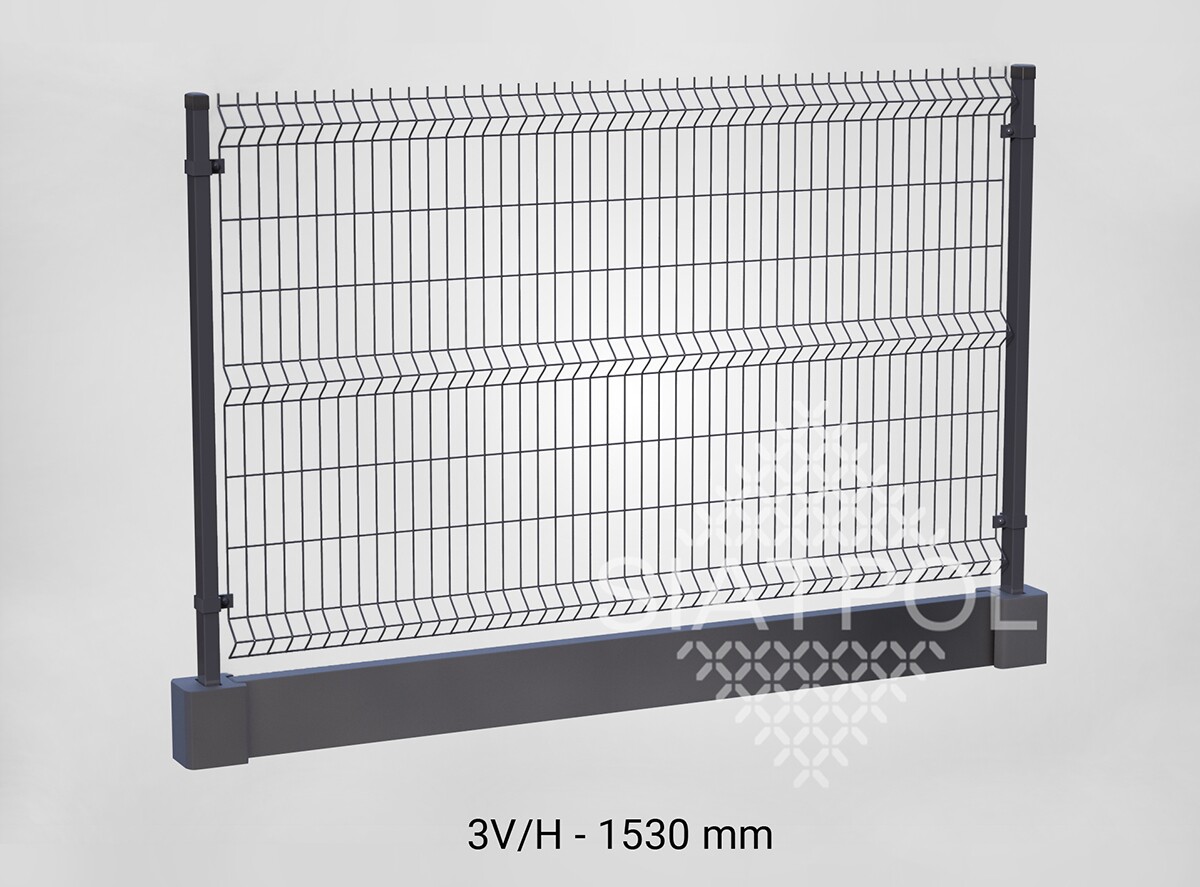

| 3V | 1530 | 2200 | 3 | 3 | ||

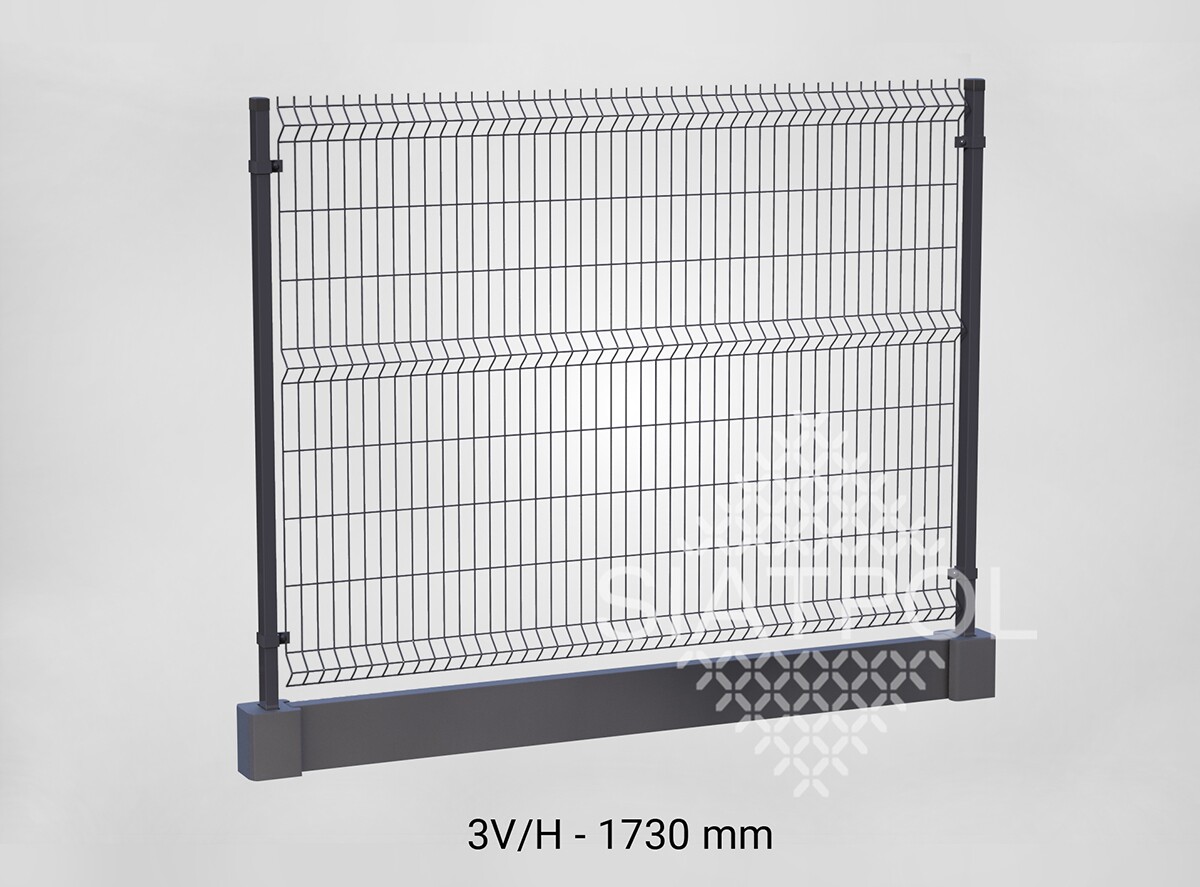

| 3V | 1730 | 2400 | 3 | 3 | ||
| TYPE 4V fence panels (4V - four reinforcements) | ||||||

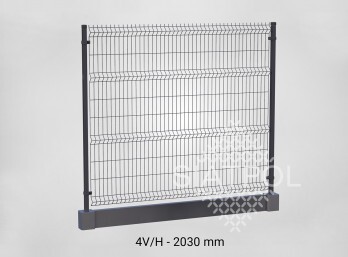

| 4V | 2030 | 2800 | 4 | 4 | ||
Implementation
We produce panel fences from galvanised steel wires, which can additionally be powder-coated. The same applies to the posts - the decision on the use of colour is made by each individual customer.
In addition to high durability, the fences and posts are also characterised by resistance to corrosion. The latter are provided with PVC top caps, which protect the interior from water ingress.
Colours

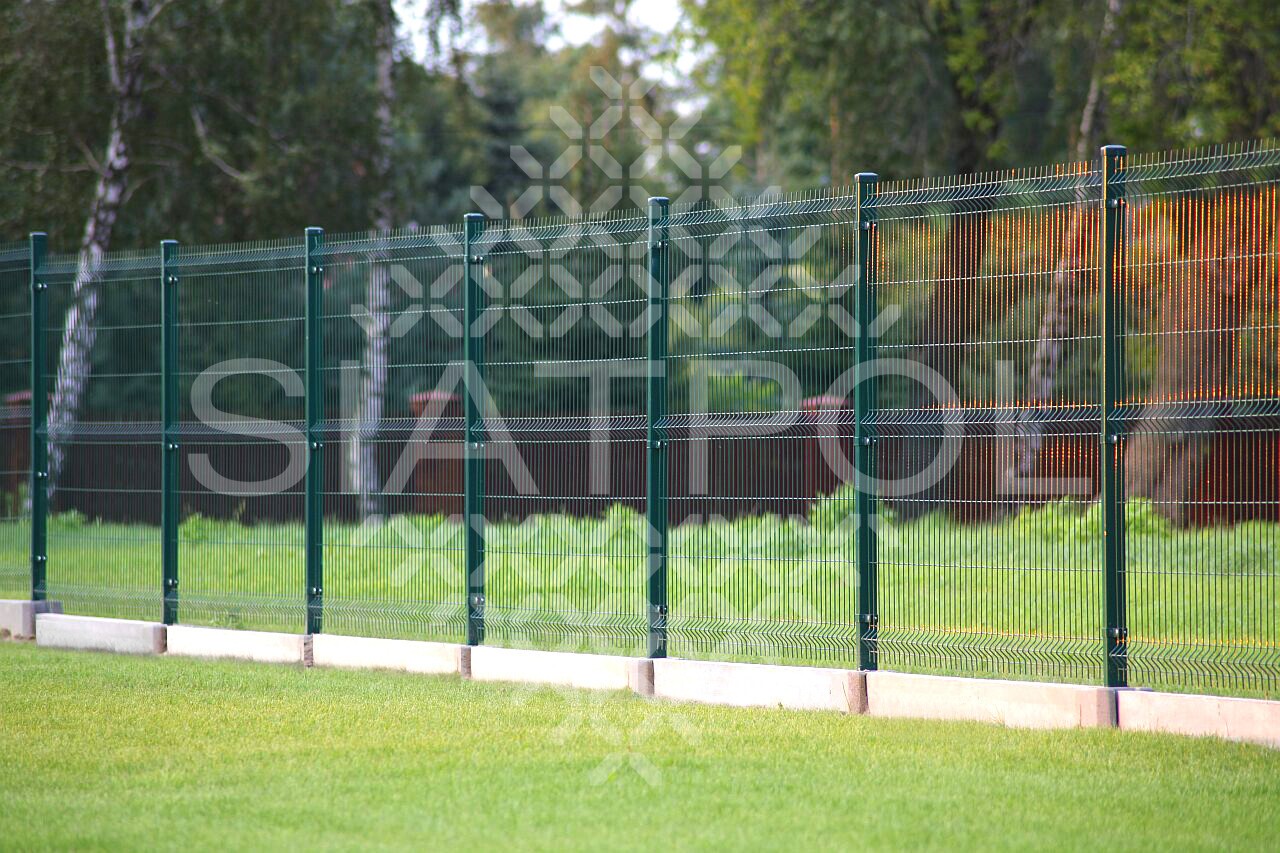

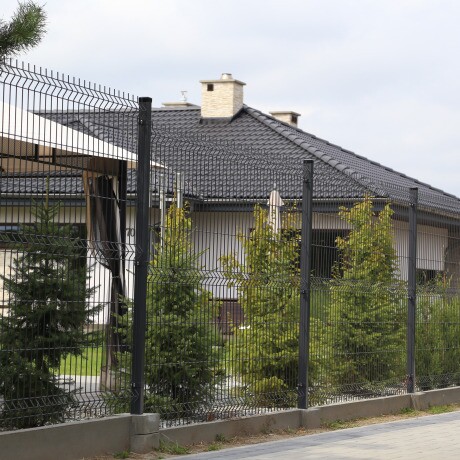

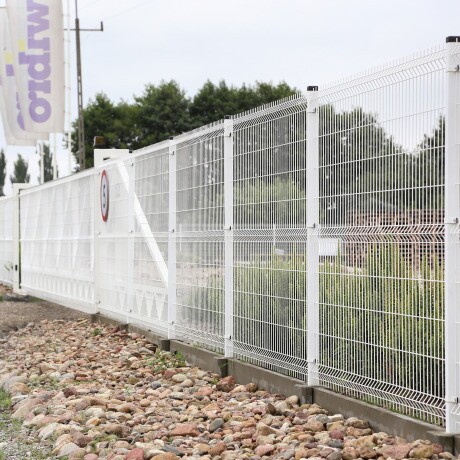

The standard colours we paint our products in are: RAL 6005 green, RAL 7016 dark graphite, RAL 8017 brown and RAL 9005 black. We also provide a choice of other RAL colours. Below is a presentation of the most popular panel colours chosen by our customers.
Mounting

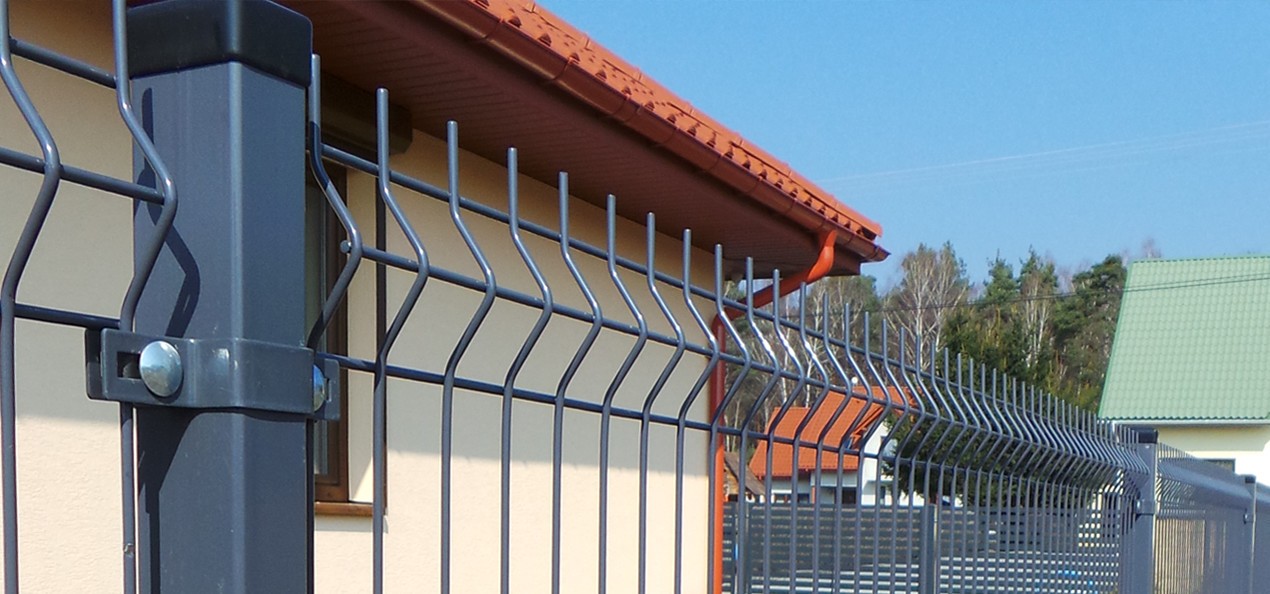

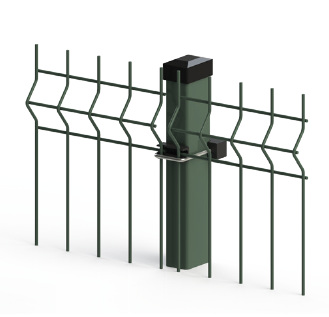

Attaching the panels to the uprights is very simple and is done by means of fixing brackets, which also make it possible to adjust the settings.
-
Hook bolt
-

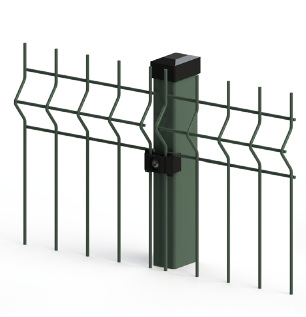

Plastic base
-

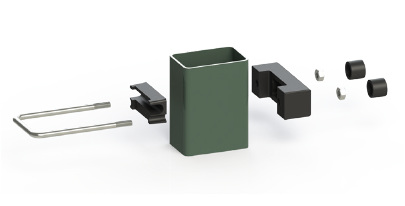

Cybant
-

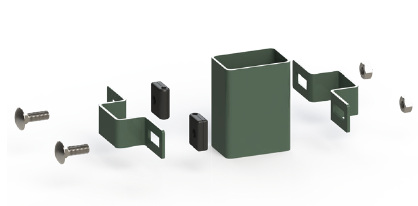

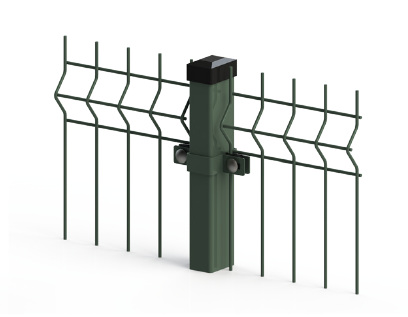

Clamp
Galvanising and powder coating
Corrosion protection for up to 15 years
Hot dip galvanizing
The fencing elements are subjected to a careful and multi-stage cleaning process followed by the formation of a protective, anti-corrosion coating with molten zinc.
Hot-dip galvanising consists in immersing a suitably prepared element in molten zinc at a temperature of 450-460°C, where a very strong inter-particle bonding of Fe-Zn is formed, protecting against corrosion for up to 50 years. The advantage of this method is that the zinc coating is applied evenly even in hard-to-reach areas (bends, grooves). The average thickness of the protective coating obtained is between 50 and 70 µm.
Increased resistance to corrosion, chemicals, temperature, chemical damage
Galvanising + powder coating
The individual elements of the fence, previously galvanised, undergo a powder coating process in an individually selected colour from the standard RAL palette.
The painting process is based on the application of powder paint by electrostatic spraying. Charged paint particles are deposited on the surface to be painted and then subjected to a curing process in an oven at a temperature of 200°C, creating a lacquer coating resistant to corrosion, chemicals, high temperatures and mechanical damage.
